AGG直流

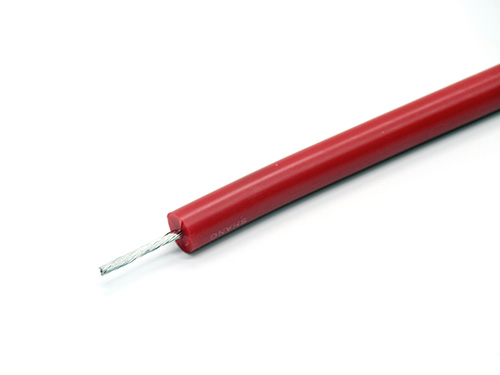

產品型號：硅橡膠絕緣高壓電線AGG(直流)
產品特性：
1、額定電壓：5kv、10kv、15kv、20kv、25kv、30kv、50kv、100kv
2、工作溫度：-60~+200℃

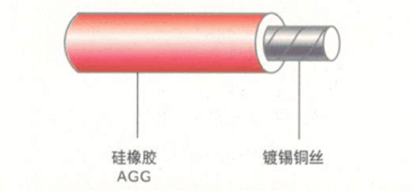

3、導體：絞合鍍錫銅線
4、絕緣：硅橡膠
5、顏色：紅/黃/蘭/白/黑/黃綠/棕等
特點用途：具有優良的耐高溫耐低溫性能，具有優良的電絕緣性能，優良的化學穩定性能，耐高電壓，耐老化，使用壽命長，且柔軟便于安裝。
廣泛應用于煤氣點火、汽車點火、高壓測試臺、電視機、微波爐、霓虹燈、儀器儀表內部高壓、安裝鏈接用電子電器及其他器械的高電壓場合。
交貨要求：按雙方合同協議商定，允許不小于10米的短段交貨，其數量應不超過交貨總長度的10％。
規格結構及參數：
|
電壓等級KV |
導體標稱 |
導體結構 |
絕緣厚度mm |
平均外徑mm |
導體電阻 |
包裝長度 |
|
根數/單線直徑 |
||||||
|
1.5 |
0.50 |
19/0.18 |
0.82 |
2.55 |
40.1 |
100 |
|
0.75 |
24/0.20 |
0.83 |
2.80 |
26.7 |
100 |
|
|
1.0 |
32/0.20 |
0.83 |
2.95 |
20.0 |
100 |
|
|
1.5 |
30/0.25 |
0.94 |
3.45 |
13.7 |
100 |
|
|
2.5 |
49/0.25 |
0.97 |
3.95 |
8.21 |
100 |
|
|
4.0 |
56/0.30 |
1.0 |
4.60 |
5.09 |
100 |
|
|
6.0 |
84/0.30 |
1.0 |
5.55 |
3.39 |
100 |
|
|
3 |
1.0 |
19/0.18 |
1.0 |
3.3 |
20.0 |
100 |
|
1.5 |
30/0.25 |
1.0 |
3.6 |
13.7 |
100 |
|
|
2.5 |
49/0.25 |
1.05 |
4.1 |
8.21 |
100 |
|
|
4.0 |
56/0.30 |
1.2 |
5.0 |
5.09 |
100 |
|
|
6.0 |
84/0.30 |
1.3 |
6.15 |
3.39 |
100 |
|
|
10.0 |
84/0.39 |
2.9 |
10.4 |
1.95 |
100 |
|
|
16.0 |
126/0.40 |
2.9 |
13.7 |
1.24 |
100 |
|
|
25.0 |
196/0.40 |
3.0 |
16.0 |
0.795 |
100 |
|
|
35.0 |
280/0.40 |
3.0 |
14.7 |
0.565 |
100 |
|
|
5 |
0.50 |
19/0.18 |
1.1 |
3.1 |
40.1 |
100 |
|
0.75 |
24/0.20 |
1.1 |
3.3 |
26.7 |
100 |
|
|
1.0 |
32/0.20 |
1.1 |
3.5 |
20.0 |
100 |
|
|
1.5 |
30/0.25 |
1.1 |
3.8 |
13.7 |
100 |
|
|
2.5 |
49/0.25 |
1.1 |
4.2 |
8.21 |
100 |
|
|
4.0 |
56/0.30 |
1.8 |
6.2 |
5.09 |
100 |
|
|
6.0 |
84/0.30 |
3.3 |
9.8 |
3.39 |
100 |
|
|
10 |
0.50 |
19/0.18 |
1.3 |
3.5 |
40.1 |
100 |
|
0.75 |
24/0.20 |
1.3 |
3.7 |
26.7 |
100 |
|
|
1.0 |
32/0.20 |
1.3 |
3.9 |
20.0 |
100 |
|
|
1.5 |
30/0.25 |
1.3 |
4.2 |
13.7 |
100 |
|
|
2.5 |
49/0.25 |
1.3 |
4.6 |
8.21 |
100 |
|
|
4.0 |
56/0.30 |
4.8 |
12.2 |
5.09 |
100 |
|
|
6.0 |
84/0.30 |
5.0 |
13.15 |
3.39 |
100 |
|
|
16.0 |
126/0.40 |
7.5 |
14.7 |
1.24 |
100 |
|
|
50.0 |
396/0.40 |
8.0 |
26.4 |
0.393 |
100 |
|
|
15 |
0.50 |
19/0.18 |
1.6 |
4.1 |
40.1 |
100 |
|
0.75 |
24/0.20 |
1.7 |
4.5 |
26.7 |
100 |
|
|
1.0 |
32/0.20 |
1.8 |
4.9 |
20.0 |
100 |
|
|
1.5 |
30/0.25 |
1.8 |
5.2 |
13.7 |
100 |
|
|
2.5 |
49/0.25 |
2.0 |
6.0 |
8.21 |
100 |
|
|
4.0 |
56/0.30 |
5.2 |
13.0 |
5.09 |
100 |
|
|
6.0 |
84/0.30 |
6.0 |
15.15 |
3.39 |
100 |
|
|
20 |
0.50 |
19/0.18 |
2.7 |
6.3 |
40.1 |
100 |
|
0.75 |
24/0.20 |
2.8 |
6.7 |
26.7 |
100 |
|
|
1.0 |
32/0.20 |
2.8 |
6.9 |
20.0 |
100 |
|
|
1.5 |
30/0.25 |
2.8 |
7.2 |
13.7 |
100 |
|
|
2.5 |
49/0.25 |
3.2 |
8.4 |
8.21 |
100 |
|
|
4.0 |
56/0.30 |
8.0 |
18.6 |
5.09 |
100 |
|
|
6.0 |
84/0.30 |
10.0 |
23.2 |
3.39 |
100 |
|
|
30 |
0.50 |
19/0.18 |
3.4 |
7.7 |
40.1 |
100 |
|
0.75 |
24/0.20 |
3.4 |
7.9 |
26.7 |
100 |
|
|
1.0 |
32/0.20 |
3.5 |
8.3 |
20.0 |
100 |
|
|
1.5 |
30/0.25 |
3.5 |
8.6 |
13.7 |
100 |
|
|
2.5 |
49/0.25 |
3.85 |
9.7 |
8.21 |
100 |
|
|
4.0 |
56/0.30 |
4.5 |
11.6 |
5.09 |
100 |
|
|
6.0 |
84/0.30 |
5.0 |
13.2 |
3.39 |
100 |
|
|
50 |
0.50 |
19/0.18 |
6.0 |
12.9 |
40.1 |
100 |
|
0.75 |
24/0.20 |
6.5 |
14.1 |
26.7 |
100 |
|
|
1.0 |
32/0.20 |
7.0 |
15.3 |
20.0 |
100 |
|
|
1.5 |
30/0.25 |
7.0 |
15.6 |
13.7 |
100 |
|
|
2.5 |
49/0.25 |
8.0 |
18 |
8.21 |
100 |
|
|
4.0 |
56/0.30 |
8.0 |
18.6 |
5.09 |
100 |
|
|
6.0 |
84/0.30 |
9.0 |
21.2 |
3.39 |
100 |
